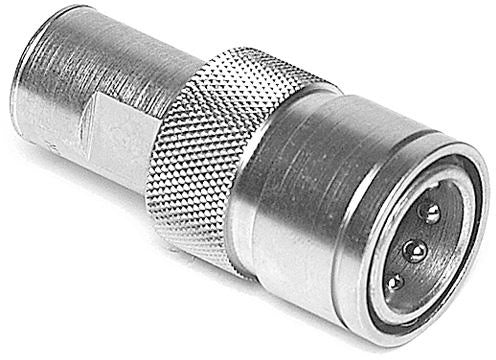

1/2" NPT S40 SERIES SAFEWAY COUPLER BODY - PUSH TO CONNECT

SAFEWAY HYDRAULICS INCSKU: 826-S454 | Minimum Purchase Quantity: 1
filler

Price:
Sale price$21.22
Stock:
Only 2 units left
Interchange 826S454,S454GV,
Net Weight (lbs) 1.00
Length 3.75
Width 1.50
Height 1.50
Brand Safeway

S40 Series  - Push To Connect Design

Female Coupler Body

SafeWay’s S40 Series is a general purpose, double shut-off fluid transfer quick coupling available with either a rugged ball valve or leak-free, high flow poppet valve. The S40 Series was the first two-way (double acting) sleeve quick coupling, introduced by SafeWay in 1969 as our first product. The S40 Series is widely used wherever the ease and convenience of one-hand connection or disconnection is desired. It is original equipment on a wide variety of agricultural and mobile equipment

  • 1/2" body size meets dimensional requirements of ISO 5675.
  • Two-way (double acting) sleeve of the S40 Series allows one-hand connect or disconnect when the coupling is clamp or bulkhead mounted.
  • Available in body sizes from 1/4" to 1/2", in a variety of thread sizes and styles.
  • Double shut-off design available with either a rugged ball valve or leak-free, high flow poppet valve.
  • All poppet valve models are 100% leak tested before leaving the factory.
  • Reliable and durable ball locking mechanism provides smooth operation time after time.
  • Critical parts are hardened for long service life.
  • Two-way sleeve design allows implement break-away when the coupling is clamp or bulkhead mounted.
  • Interchangeable half-for-half with Parker/Pioneer 4200 Series.
