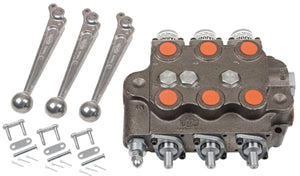

3 Spool Closed Center Hydraulic Control Valve; 4-way, 3 position; 1st Spool Float Detent, All Spools Spring Centering to Neutral; With End Ports; No Relief Valve; Comes with Handle; For operating double-acting cylinders or a reversible hydraulic motor. BA3B22XAAD5EA0
Specifications
| Number of Valve Spools |
3 |
| Hydraulic Systems |
Closed |
| Max Flow |
30 GPM |
| Spool 1 Specification |
4 Way, 4 Position, Closed Center, Detent Float Position |
| Spool 1 Action |
4 Position, Spring Centering To Neutral, Float Position Detent |
| Spool 2 Specification |
4 Way, 3 Position |
| Spool 2 Action |
3 Position Spring Centered |
| Spool 3 Specification |
4 Way, 3 Position |
| Spool 3 Action |
3 Position Spring Centered |
| Relief Port |
No Relief Port |
| Power Beyond Port |
Closed Center Plug |
| Outlet Location |
End Outlet |
| Port Size |
Inlet And Outlet 3/4 Inch Nptf, Working Ports 1/2 Inch Nptf |
| Handle |
Comes With Handles |
